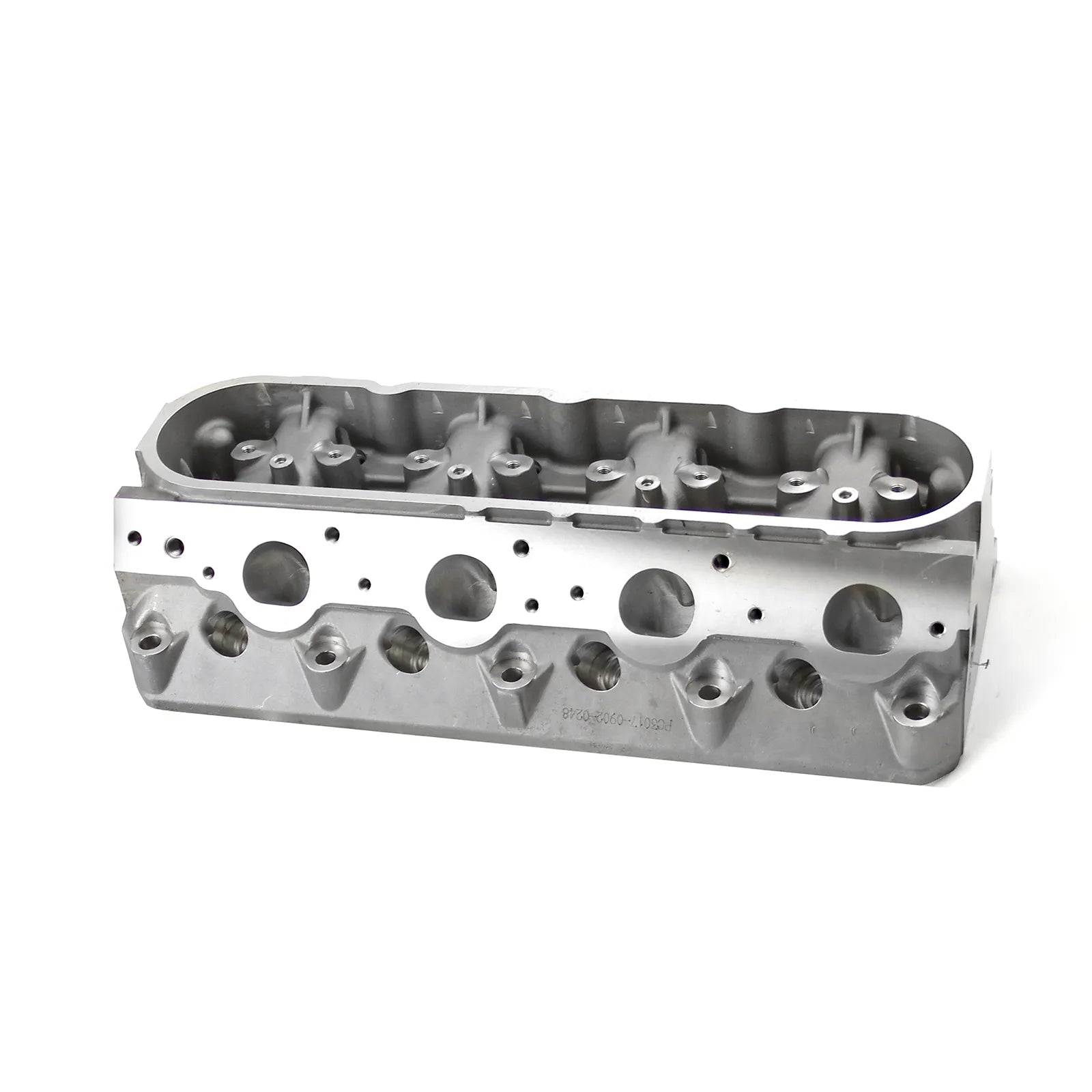

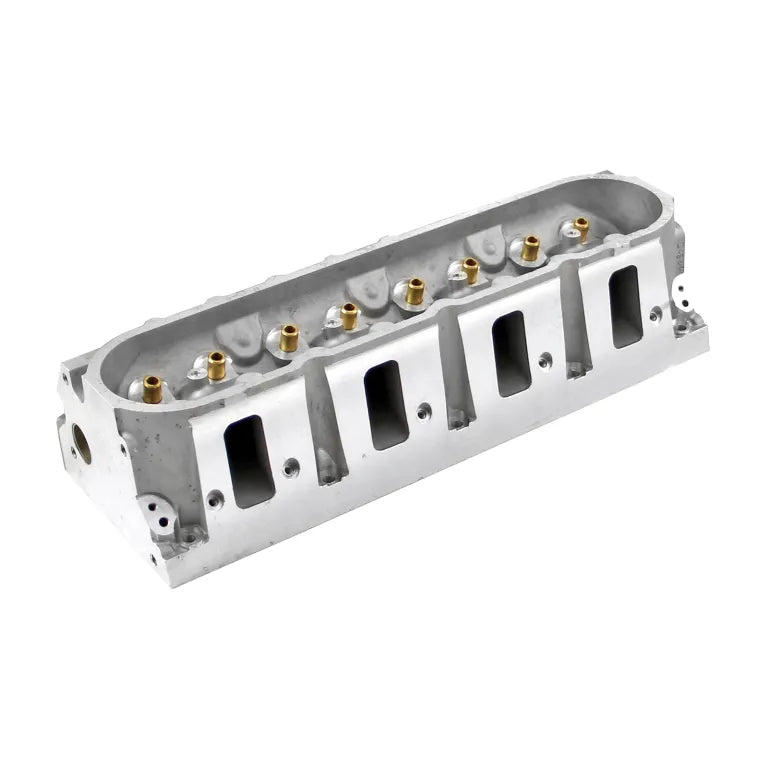

Chevy GM LS3 L92 L76 250cc 64cc Aluminum Bare Cylinder Head

Chevy GM LS3 L92 L76 250cc 64cc Aluminum Bare Cylinder Head

$538.32 USD
$538.32 USD
Sale Sold out
Free Shipping
  • 5-14 Day Shipping
  • Safe Checkout

Cylinder Head Specification

Part Number: PCE281.1469
Part Type: Cylinder Head [Bare]
Cylinder Head Style: Bare
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 64 cc
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 250 cc
Exhaust Runner Volume (cc): n/a
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Shape: Oval
Exhaust Port Location: Standard
Comp. Valve Job: No
Intake Valves Included: No
Intake Valve Diameter (in): 2.165 in.
Exhaust Valves Included: No
Exhaust Valve Diameter (in): 1.590 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guide plates Included: No
Valve Cover Mounting Style: Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15 deg.
Exhaust Valve Angle: 15 deg.
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually.
