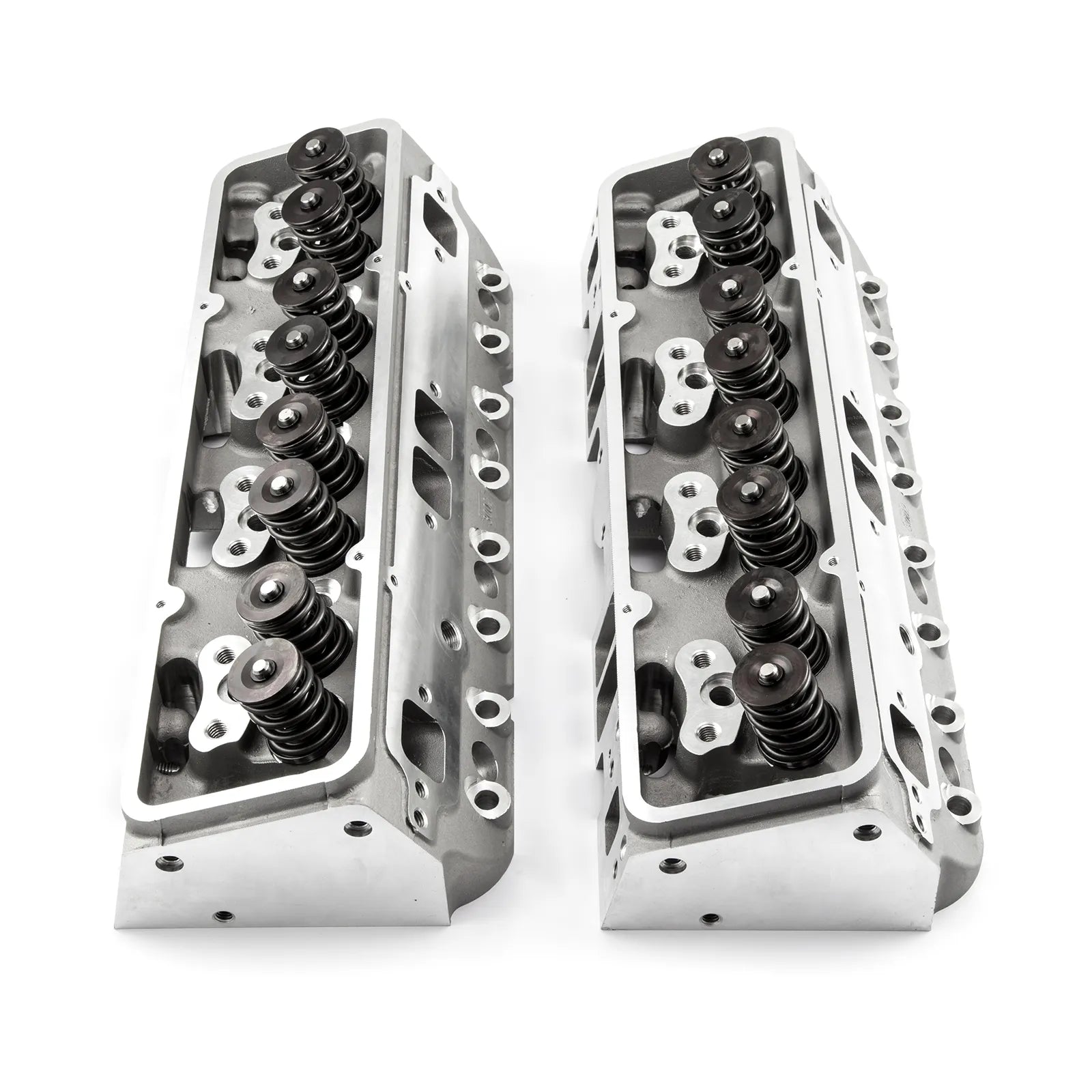

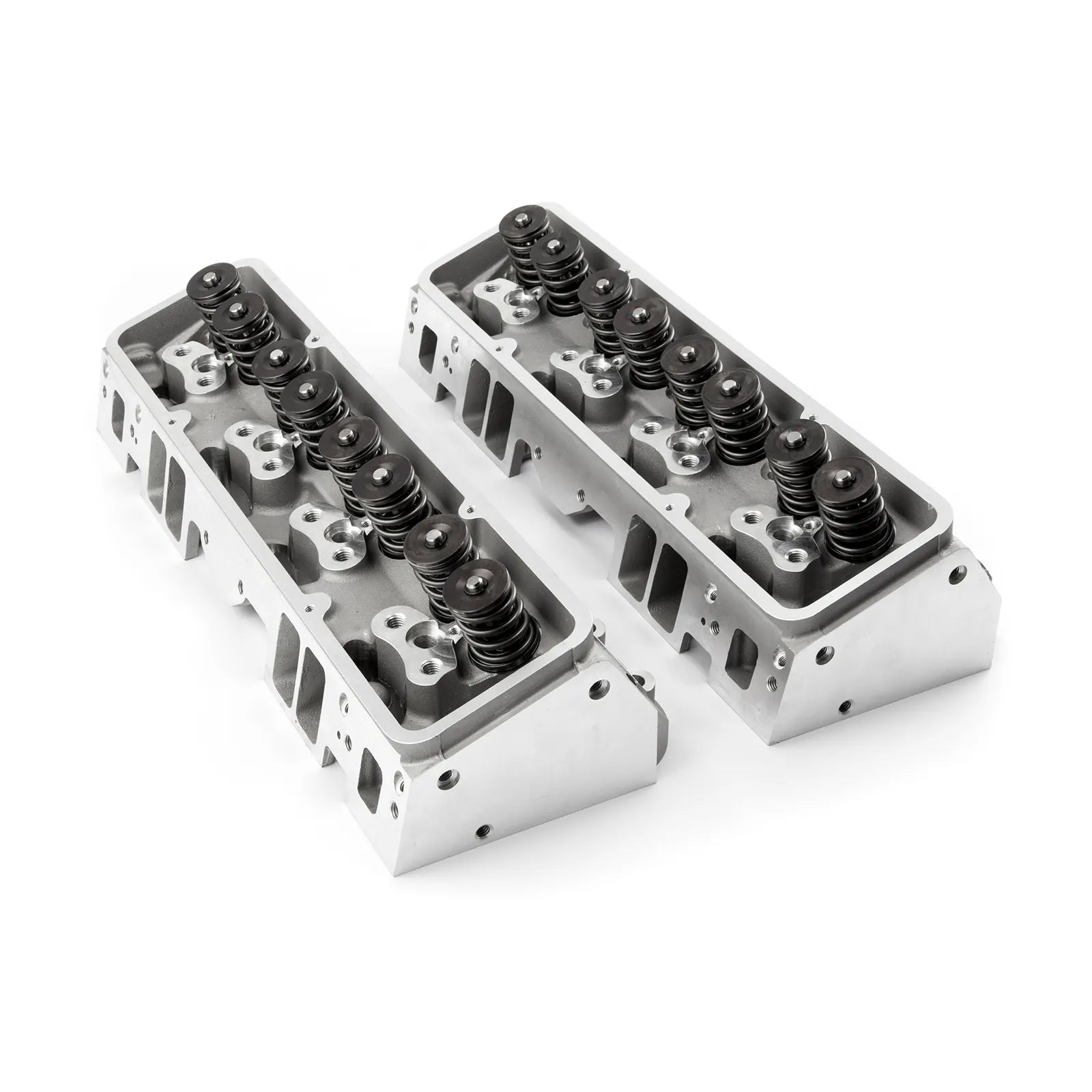

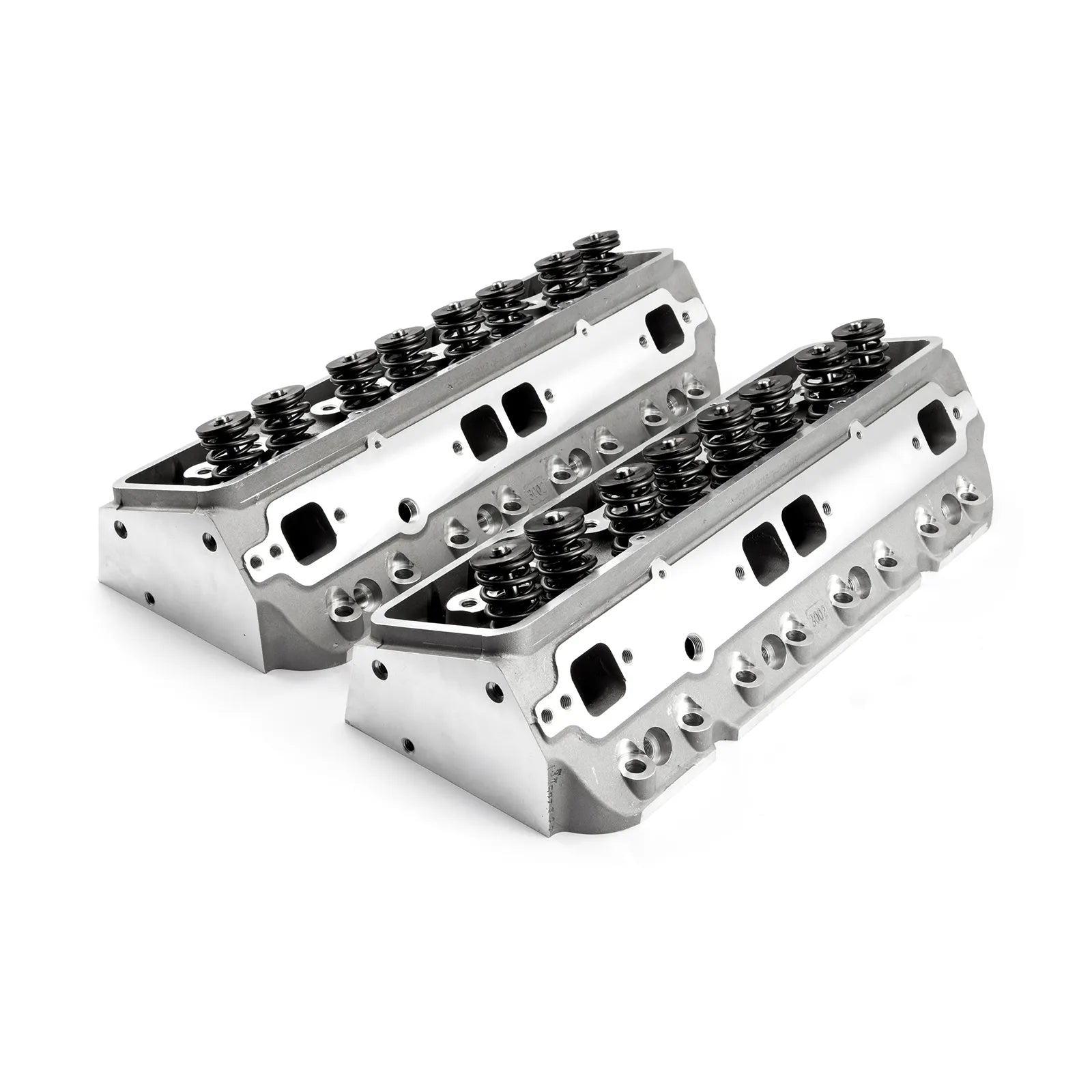

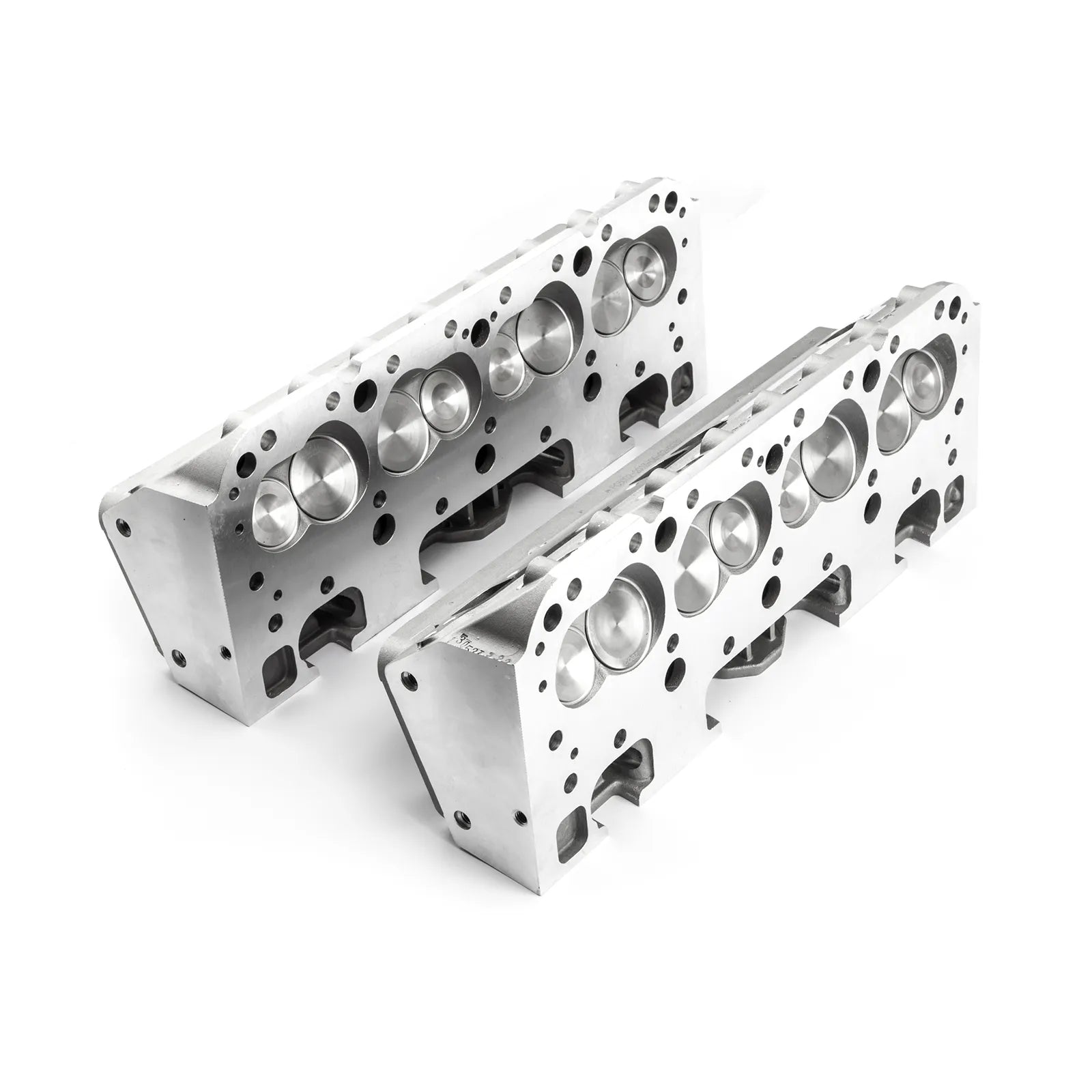

Chevy SBC 350 205cc 64cc Angle Hydraulic Roller Assembled Cylinder Heads

Name: Chevy SBC 350 205cc 64cc Angle Hydraulic Roller Assembled Cylinder Heads
Brand: Engine One Performance
Price: 1005.26 USD
Availability: InStock

Chevy SBC 350 205cc 64cc Angle Hydraulic Roller Assembled Cylinder Heads

$1,005.26 USD

Sale Sold out

Free Shipping

Quantity

5-14 Day Shipping
Safe Checkout

Assembly SpecificationsMax Lift: .580″
Coil Bind: .750″
Intake Install: 145lbs @ 1.9
Exhaust Install: 145lbs @ 1.9
Closed Sear Pressure: 145lbs
Open Seat Pressure: 360lbs

Cylinder Head Specification

Part Number:	PCE281.2009
Part Type:	Cylinder Head [Assembled]
Product Line:	Hydraulic Roller Tappet
Cylinder Head Style:	Assembled
Cylinder Head Material:	Aluminum
Cylinder Head Finish:	Natural
Combustion Chamber Volume (cc):	64 cc
CNC-Machined Combustion Chamber:	No
Intake Runner Volume (cc):	205 cc
Exhaust Runner Volume (cc):	n/a
CNC-Machined Intake Runner:	No
CNC-Machined Exhaust Runner:	No
Intake Port Shape:	Square
Intake Port Location:	Standard
Exhaust Port Shape:	Square
Exhaust Port Location:	Standard
Spark Plug Style:	Angle
Comp. Valve Job:	No
Intake Valves Included:	Yes
Intake Valve Diameter (in):	2.020 in.
Exhaust Valves Included:	Yes
Exhaust Valve Diameter (in):	1.600 in.
Valve Springs Included:	Yes
Maximum Valve Lift (in):	0.580 in.
Outside Diameter of Outer Spring (in):	1.450 in.
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	10 degree
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Positive stop
Rocker Arm Studs Included:	No
Rocker Arms Included:	No
Rocker Arm Nuts Included:	No
Guide plates Included:	No
Valve Cover Mounting Style:	Center & Perimeter Bolt
Accessory Bolt Holes Drilled:	Yes
Intake Valve Angle:	23 deg.
Exhaust Valve Angle:	23 deg.
Valve Guides Included:	Yes
Valve Guide Material:	Bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	3-angle
Valve Seat Material:	Ductile iron
Steam Holes Drilled:	No
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Quantity:	Sold as a pair.
