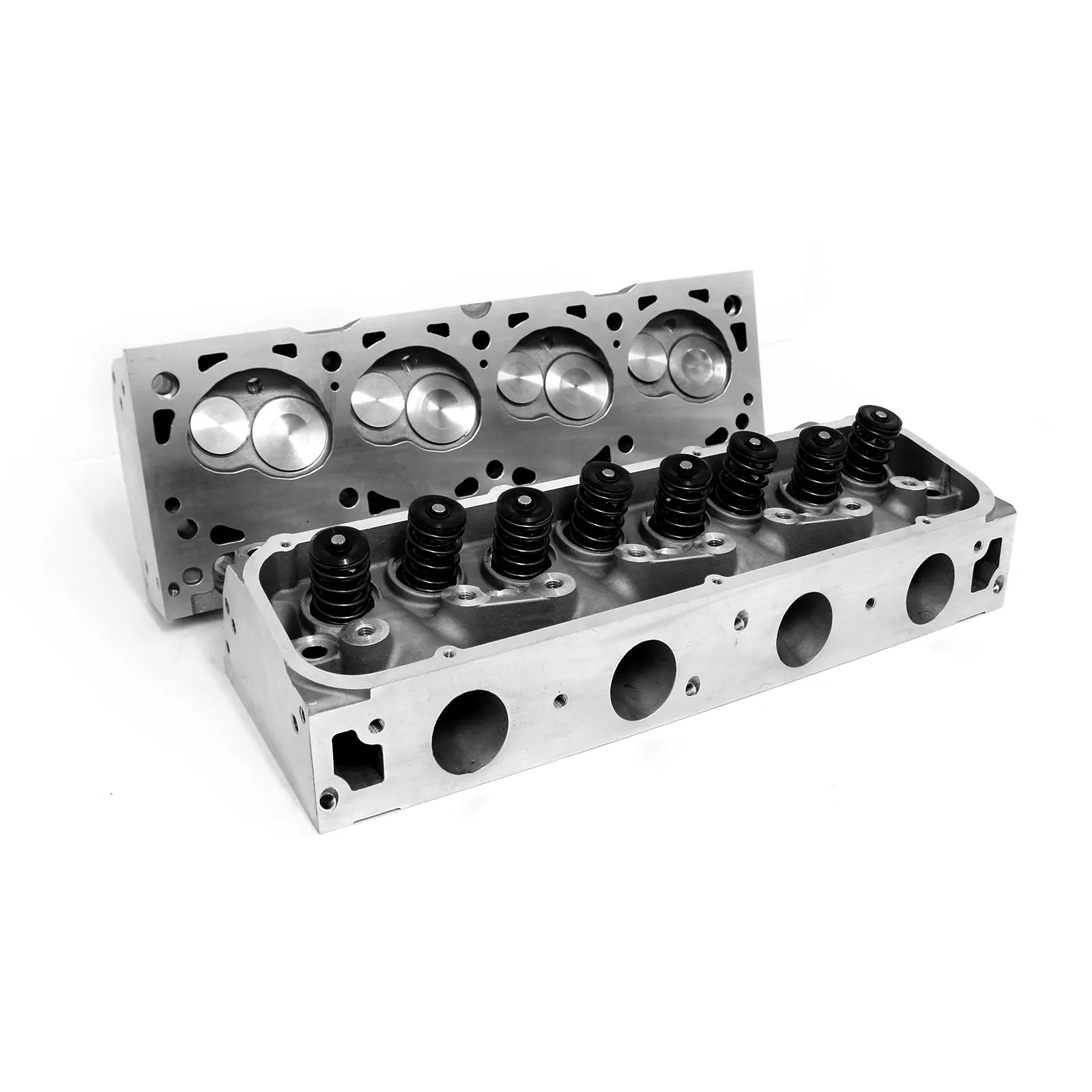

Ford 429 460 275cc 95cc Hydraulic Flat Assembled Cylinder Heads
$1,181.05
-
Assembly SpecificationsMax Lift: .600
Coil Bind: .900
Intake Install: 130lbs @ 1.9
Exhaust Install: 130lbs @ 1.9
Closed Sear Pressure: 130lbs
Open Seat Pressure: 300lbs
-
Cylinder Head Specification:
Part Number: PCE281.2075 Part Type: Cylinder Head [Assembled] Product Line: Hydraulic Flat Tappet Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 95 cc CNC-Machined Combustion Chamber: No Intake Runner Volume (cc): 275 cc Exhaust Runner Volume (cc): 90cc CNC-Machined Intake Runner: No CNC-Machined Exhaust Runner: No Intake Port Shape: Round Intake Port Location: Standard Exhaust Port Shape: Square Exhaust Port Location: Standard Spark Plug Style: Standard Comp. Valve Job: No Intake Valves Included: Yes Intake Valve Diameter (in): 2.190 in. Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.710 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.600 in. Outside Diameter of Outer Spring (in): 1.550 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Chromoly steel Locks Included: Yes Lock Style: 10 degree Valve Stem Seals Included: Yes Valve Stem Seal Style: Positive stop Rocker Arm Studs Included: No Rocker Arms Included: No Rocker Arm Nuts Included: No Guide plates Included: No Valve Cover Mounting Style: Perimeter Bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: Std Exhaust Valve Angle: Std Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold as an assembled pair.
